72m Truck Mounted Platform
Description
Compact in design but very efficient during operation, the 72m platform is a superb all-rounder when combining height with performance. Not only is it great for working at heights up to 72m but also for outreach or up and over projects where alternative access is not an option.
Specification
Max. working height 72.0 m
Max. basket floor height70.0 m
Max. horizontal outreach35 m
Max. permissible load600 kg
About The 72m Truck Mounted Platform

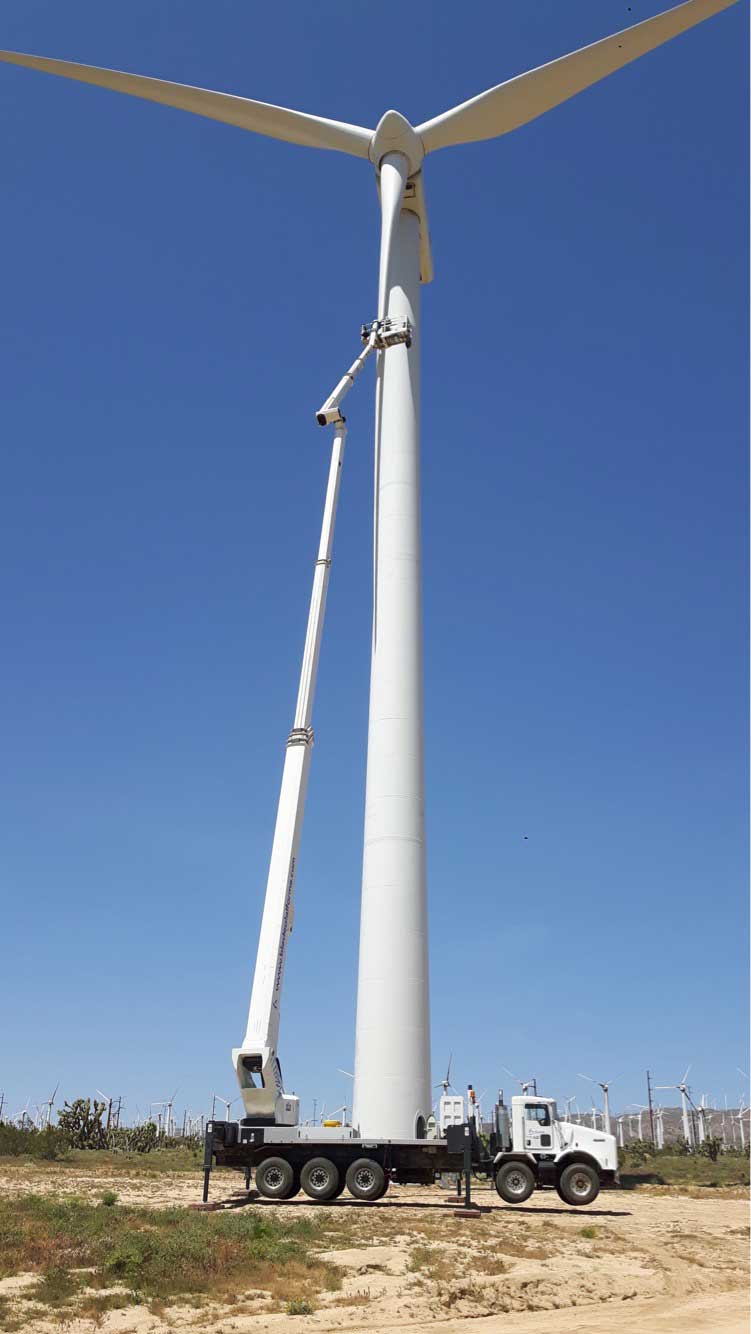

The 72m truck mounted platform is the ideal choice for wind turbine maintenance . Whether you are installing Performance upgrades to maximize the efficiency of your wind turbine or cleaning your wind turbine ahead of a planned inspection of your WTG the 72m truck mounted platform is the ideal machine for keeping Wind turbine repair teams safe when working at heights of up to 72 metres.
Full specification
Working range
Max. working height 72 m
Max. basket floor height 70 m
Max. horizontal outreach 35 m
Boom system
Number Of Extensions 4
Workman basket
Working Area 3.88 x 1.05 x 1.1 m
Slewing range 2 x 80°
Max load in heavy-duty basket (optional) 700 kg
Stabilizers
Max. stabilizer spread 8.27 m
Carrier vehicle and installation
GVW class 40t
Length in transport position 13.8m
Height in transport position 4.1 m
